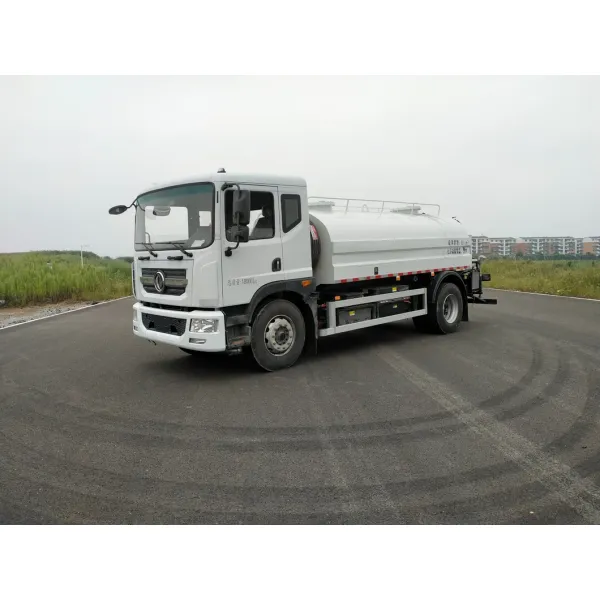

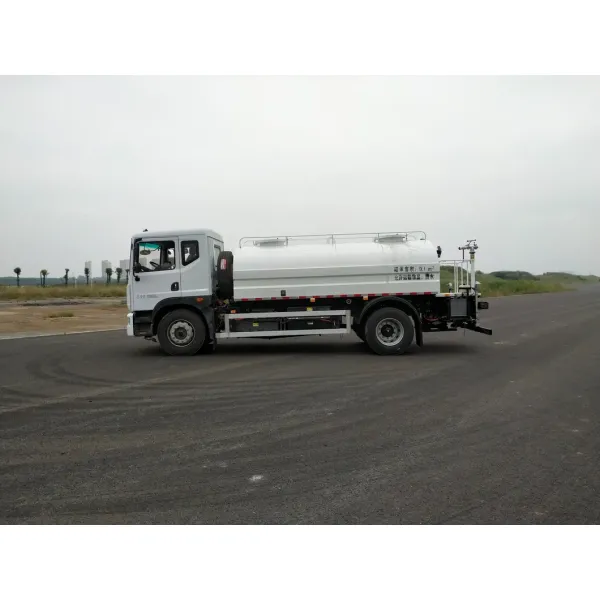

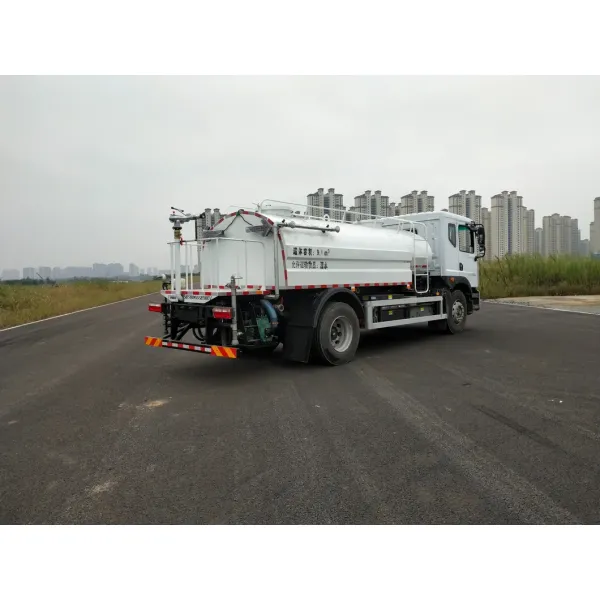

Chengli Group Heavy Duty Truck Shaanxi Automobile Liberation Futian Dongfeng Jianghuai Yiwei Pure Electric High End Green Sprinkler

Model NO. : EQ1121KACEV1

Volume : 10001 - 15000L

Certification : ISO9001

Emission Standard : Renewable Energy

Sprinkling Area : 12 - 16m

Transmission Type : Electric Drive

Payload : 20T

Fuel : Electric Drive

Drive Wheel : 4×2

Engine Capacity : Electric and New Energy

Condition : New

Transport Package : Complete Vehicle

Specification : 8010× 2520× 3070

Trademark : CLW

Origin : China

Production Capacity : 100

MOQ : 1

Price : US $65,800-98,000

Place of Origin : CHINA

Packaging Details : Nuked

Delivery Time : 15 working days

Payment Terms : T/T,LC,

Supply Ability : 150 sets/month

Contact Now

Vehicle type related
1.Multi functional sprinkler truck: Emphasize that the sprinkler truck has multiple functions, such as watering, rinsing, greening irrigation, etc.

Environmental sanitation sprinkler truck: Highlight its role in maintaining environmental hygiene.
Small sprinkler truck: suitable for working on narrow roads or small areas.
Medium sized sprinkler truck: with moderate water carrying capacity and operational capability. 5. Large sprinkler truck: With a large water capacity, it is suitable for operating in large areas.

Related to functional features

1.Watering to reduce dust: One of the main functions of a sprinkler truck is to lower the dust content in the air by spraying water mist.

Road washing: It can wash away dirt and debris on the road.
Greening irrigation: Provide water for the green plants on both sides of the road.
High pressure water gun: Some sprinkler trucks are equipped with high-pressure water guns, which are used to clean stubborn stains or flush buildings.
Water tank capacity: Refers to the water storage capacity of the sprinkler truck.
Spraying range: refers to the coverage area of the sprinkler truck spraying water.

7. spray mode: such as fog, column and other different watering modes.

Components and technology related

1.Water tank material: usually made of stainless steel, carbon steel, and other materials.

Pump type: determines the spray pressure and flow rate of the sprinkler truck.
Valve control: used to regulate the size and direction of water flow.
Intelligent control system: achieve automated operation and monitoring.
Anti corrosion treatment: Protect the sprinkler components from water corrosion.

Application scenario related

Urban roads: the most common workplace for sprinkler trucks.
Dust reduction on construction sites: Reduce dust pollution on construction sites.
Park greening: Watering the plants in the park.
Factory cleanliness: Maintain the environmental hygiene of the factory area.

5. Highways: Conduct road surface cleaning and dust reduction operations.
Chengli Group Heavy Duty Truck Shaanxi Automobile Liberation Futian Dongfeng Jianghuai Yiwei Pure Electric High End Green Sprinkler

Chengli Group Heavy Duty Truck Shaanxi Automobile Liberation Futian Dongfeng Jianghuai Yiwei Pure Electric High End Green Sprinkler

Main technical parameters

Main technical parameters

Project		Parameter	Remarks
Announcement parameters	Announcement of the whole vehicle
Announcement parameters	Announcement of chassis	EQ1181DACEV.4
Quality parameters	The maximum total mass (Kilogram)	18,000
	Quality of preparation (Kilogram)	12720
	Load quality (Kilogram)	5085
Size parameters	Length × Width × Height (Mm)	8010 times 2520 x 3070
	Wheelbase (Mm)	4500
	Front suspension/Back suspension (Mm)	1260/2250.
	Move forward/Rear wheelbase (Mm)	1910/1865.
Power battery	Battery type	Lithium iron phosphate
	Battery manufacturer	Hubei Yiwei Power Co., Ltd.
	Box model	C173L-1P63SHW.
	Battery power (Kilowatt hour)	210.56
	The nominal voltage (V.)	608.58
	The nominal capacity (Ah)	346
	Energy density of power battery system (W·h/kg)	156.4
Chassis motor	Manufacturing enterprise/Model	Chinese car/TZ366XS50E.
	Type	Permanent magnet synchronous motor
	.Rated/Peak power (Kilowatt)	120 / 180
	.Rated/Peak torque (Nm)	Five hundred/1000
	.Rated/Peak speed (Rpm)	2,292/4,500
Chassis motor controller	Model	KTZ54X40SP5S.
Chassis motor controller	Manufacturing enterprise	Chinese car
Other	The maximum speed (Km/h)	90	/
	Mileage (Kilometre)	280	Isospeed method
	Charging time (H)	1.5	20%-90% soc
Volume	The effective volume of the water tank announcement (Medium size^Three)	Nine.1
Low-pressure waterway	Lift (M)	110
	Volume of flowMedium size^Three/H	50
	Flushing width (M)	≥24
	Springing speed (Km/h)	7 to 20
	Range of water cannon (Medium size)	≥40
The duration of the sprinkler operation	A tank of water can last for continuous operation time (Min)	> forty five
	Continuous operation time when fully charged (h)	6	SOC 100%-20%
	How many boxes of water (box) can be used continuously when fully charged?	8	SOC 100%-20%
