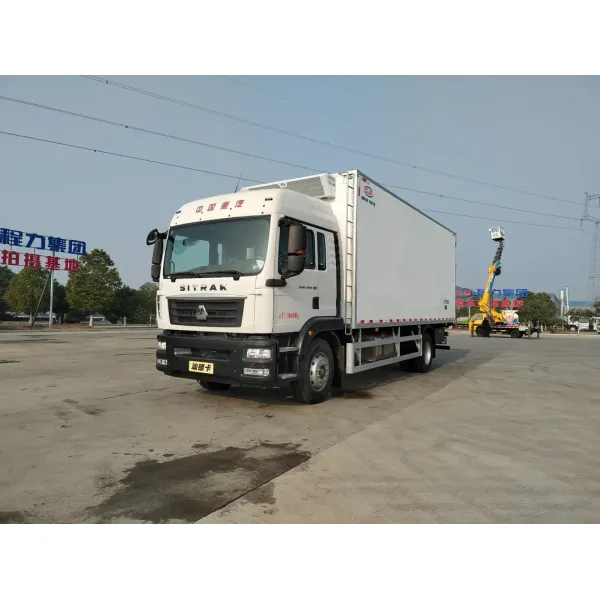

Shacman Heavy Duty 4X2 Refrigerated Truck 15t Frozen Food Transport Vehicle

Model NO. : CLW

Certification : ISO9001

Emission Standard : Euro 3

Transmission Type : Manual

Horsepower : 251-350hp

Fuel : Diesel

Bearing Capacity : Large

Condition : New

Transport Package : Whole Vehicle Transportation

Specification : 18T

Trademark : CLW

Origin : Suizhou

Production Capacity : 600 Vehicles /Year

MOQ : 1

Price : US $48,888-58,888

Place of Origin : CHINA

Packaging Details : Nuked

Delivery Time : 15 working days

Payment Terms : T/T,LC,

Supply Ability : 150 sets/month

Contact Now

                                Shandeka brand ZZ5186XLCK521GF1 type refrigerated car
[Vehicle technical parameters]
Product trademark ShanDe card Announcement batch 384
product name chill car product model ZZ5186XLCK521GF1
gross mass (Kg) 18000 Tank volume (m3)
Rated load mass (Kg) 10190,10125,9610,9545 outline dimension (mm) 9170,9350,8570,10170,11100,9570,10370,10350,875026003920,3980 (optional)
curb weight (Kg) 7680,8260 Goods Chamber Size (mm) 6800,6900,6200,7800,8600,70002450,2300,24002300,2400,2450,2500,2600 (optional)
Number of passengers (person) 2,3 Maximum saddle load mass (Kg)
Approach angle / departure angle of (°) 16/12,16/10 Front suspension / rear suspension (mm) 1450/2520,1450/2700,1450/2420,1450/3120
axle weight (Kg) 6500/11500 Top vehicle speed (Km/h) 89,110
[Chassis technical parameters]
Chassis model ZZ1186K501GF1 Chassis name truck chassis
brand name ShanDe card manufacturing enterprise Sinotruk Group Jinan Commercial Vehicle Co., LTD
number of axles 2 Number of tires 6
wheel base (mm) 3600,3800,4200,4500,4700,5000,5200,5600,5800,6300,5400,6100
tyre size 12 R 22.5 18PR,11.00R2018PR,10.00R20 18PR, 275 / 80R22.5 18PR, 295 / 60R22.5 18PR, 315 / 60R22.5 18PR (optional)
Number of steel plate spring sheets 3/4,2/3+2,3/3+2,3/9+8,3/7+3,3/7+6,7/7+3,7/7+6 front gauge (mm) 1900,1950,1998,2015,2035,2065
Fuel types diesel oil rear track (mm) 1850,1880
Emission basis standard The GB17691-2018 countries
engine type Engine production enterprise displacement (ml) power (Kw)
WP6H245E61
MC07H.29-60
MC07.29-60
 		 Weichai Power Co., LTD
China Heavy Duty Vehicle Group Co., Ltd
China Heavy Duty Vehicle Group Co., Ltd
 		 6220
7360
6870
 		 180
213
213

The high-end refrigerated compartment of Chengli adopts advanced latest wooden technology and bridge insulation technology. The interior and exterior of the compartment are made of high-strength fiberglass, deeply embedded bolts, and seamlessly synthesized using large negative pressure equipment. It is formed in one go, with fast cooling speed, slow temperature dissipation, and good insulation effect. The middle is filled with a 10cm advanced insulation plate, and the bottom plate is made of a 10cm thick and durable thick plate with seismic insulation. The compartment is surrounded by right angle aluminum profiles, and the rear door is locked with stainless steel.
Choose different brands of refrigeration units
Optional activity meat hook frame
Optional ventilation ductShacman Heavy Duty 4X2 Refrigerated Truck 15t Frozen Food Transport VehicleShacman Heavy Duty 4X2 Refrigerated Truck 15t Frozen Food Transport VehicleShacman Heavy Duty 4X2 Refrigerated Truck 15t Frozen Food Transport VehicleShacman Heavy Duty 4X2 Refrigerated Truck 15t Frozen Food Transport VehicleShacman Heavy Duty 4X2 Refrigerated Truck 15t Frozen Food Transport VehicleShacman Heavy Duty 4X2 Refrigerated Truck 15t Frozen Food Transport VehicleShacman Heavy Duty 4X2 Refrigerated Truck 15t Frozen Food Transport VehicleShacman Heavy Duty 4X2 Refrigerated Truck 15t Frozen Food Transport VehicleShacman Heavy Duty 4X2 Refrigerated Truck 15t Frozen Food Transport Vehicle
