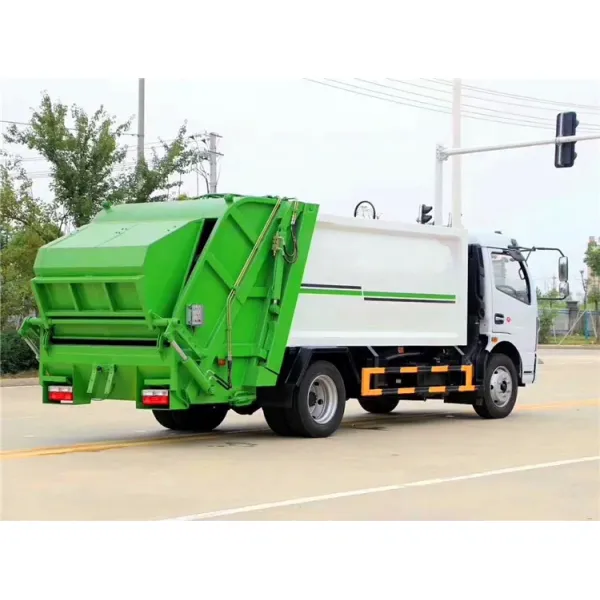

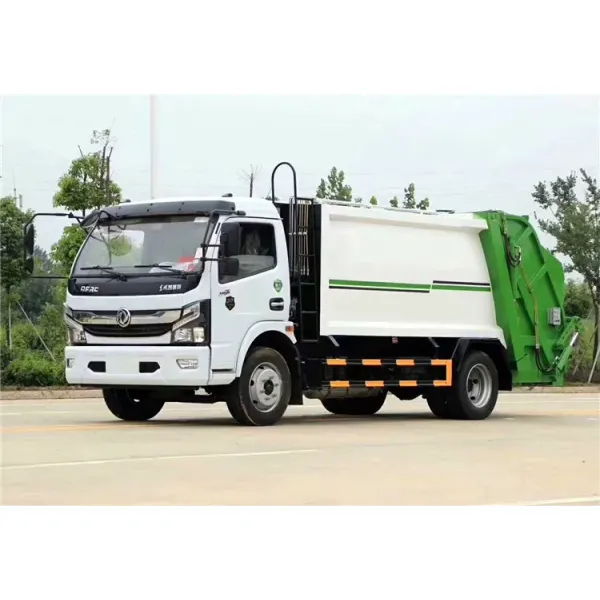

Dongfeng 10cbm Duolika Rear-Mounted Compression Garbage Truck

Certification : ISO9001

MOQ : 1

Price : US $45,000-65,000

Place of Origin : CHINA

Packaging Details : Nuked

Delivery Time : 15 working days

Payment Terms : T/T,LC

Supply Ability : 150 sets/month

Model NO. : CLW5389TYDF5

Type : Recycling

Volume : 10001-15000L

Emission Standard : Euro 4

Transmission Type : Automatic

Fuel : Gasoline

Drive Wheel : 4×2

Brand : Dongfeng

Models : Micro

Usage : Dump

Condition : New

Transport Package : Complete Vehicle

Specification : 15 square

Trademark : CLW

Origin : China

HS Code : 2801100000

Production Capacity : 1000

Contact Now

Model introduction:
The compressed garbage truck is composed of a sealed garbage box, a hydraulic system and an operating system. The whole vehicle is fully sealed. The sewage in the process of self-compression, self-dumping and compression all enters the sewage compartment, which completely solves the problem of garbage transportation.Secondary pollutionThe problem avoids inconvenience to people. The key parts are imported parts, which have the advantages of high pressure, good sealing, convenient operation, safety and so on. It can be equipped with a variety of rear-hanging bucket flipping mechanism or garbage bucket flipping mechanism.
Dongfeng 10cbm Duolika Rear-Mounted Compression Garbage TruckDongfeng 10cbm Duolika Rear-Mounted Compression Garbage TruckDongfeng 10cbm Duolika Rear-Mounted Compression Garbage TruckDongfeng 10cbm Duolika Rear-Mounted Compression Garbage Truck

Main technical parameters:
Product name Compressed garbage truck
Total mass (Kg) 11995 Box volume (m3) 9
Rated Load Mass (Kg) 4800 Dimensions (mm) 7430×2350×2850,3000
Prepared mass (Kg) 7000 Front suspension/rear suspension (mm) .1,130 / 2,200
The number of passengers in the cab (persons) Three Wheelbase (mm) 3800
Approach angle/departure angle (°) 13/21 Shaft load (Kg) 4,350/7,645
Number of axes 2 Maximum speed (Km/h) 103
[Technical parameters of chassis]
Chassis model EQ1125SJ8CDC. Name of the chassis Cargo vehicle chassis (Class II)
Trademark name Dongfeng brand Manufacturing enterprise Dongfeng Automobile Co., Ltd.
Approach angle/departure angle (°) 14/21 Number of tires 6
Tire specifications 245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR
.The number of steel plate springs 8/10+7,12/12+9 Front wheelbase (mm) 1745,1802,1820,1842,1765,1890
Types of fuel Diesel oil Rear wheelbase (mm) 1630,1650,1800,1720
Emission standards GB17691-2018 Country VI
Engine model Engine manufacturers Discharge (ml) Power (Kw)
YCY 30165-60 Guangxi Yuchai Machinery Co., Ltd. 2970 121
Chassis configuration:
Dongfeng Dorika 9-way compressed garbage truck adopts Dongfeng D7 sanitation vehicle special chassis, 3800MM wheelbase, Yuchai 165 horsepower engine, Wanliyang 6-speed gearbox, 245 vacuum tire, 192mm double-layer beam, 2.7T/5.5T Dena front and rear axles, exhaust brake, air brake, original factory Air conditioner, national joint warranty.

Top-loading configuration table:
Order .Name Specifications and models
1 Chassis name/model Dongfeng D7 series
2 Wheelbase (mm) 3800
Three The volume of the box is m3 9
4 Box thickness mm Wugang Q345 low-alloy manganese steel (side four and bottom five) flipping mechanism scraper, arc bottom plate, slide adopts Q710 high-strength plate
5 Sewage tank There is a sewage sink on the front of the large box, and an integrated sewage tank at the bottom of the filler.
6 Box shape Arc, the side plate is the whole plate for one-time molding, no welding
7 Hydraulic cylinder Hypris
8 Oil pump Changyuan
9 Multi-way valve Zhongmei, Yangzhou, Jiangsu Province
Ten Hydraulic oil pipe Bonway hydraulic oil pipe (high-density double-layer 24Mpa)
11 System rated pressure 18 MPa
12 Compression ratio ≥0.85
13 Consolidation method Two-way peristaltic compression
14 Control system German Simens PLC and German photoelectric sensors
15 Loading single cycle time ≤24 s
16 .Time to dump garbage ≤35 s
17 Control method All-in-one independent operation of the handsplet (standard remote control)
18 Key component structure Reinforced with cast steel parts
19 Shovel and skateboard slider Highly wear-resistant nylon
20 The design of the whole vehicle Use SW three-dimensional software to simulate
21 Back-hanging bucket method .Standard configuration: rear-turning barrel type (can hang the national standard 240 plastic barrel or iron barrel or triangle bucket) / optional: fully sealed bucket, swing arm flip
22 Body color/text Body color and text painting can be customized according to customer requirements.
23 Attachment Profile light, side light, work light
Product highlights:
  1. Larger loading capacity: the same volume of the box increases by 5% per square capacity compared with the previous generation (more than 7 barrels of 240L trash cans).
  2. Fault-prone position: The force position of the scraper skateboard is generally prone to deformation, resulting in unstable work. The new generation of products developed by our company has innovated in terms of materials and design, making the performance of the whole vehicle more stable and improving the service life.
  3. .Working time: The loading time of the new generation of compressed garbage trucks produced by our company is within 25 seconds in the idle state, and the loading time is the longest time used by the vehicle, so it is economical fuel, reduces costs, and improves work efficiency.
  4. Wear parts: The scraper is the largest force on the vehicle, and the slide is the most worn. Our company's slide adopts a high-strength Q710 of more than 8mm. The middle of the scraper is strengthened separately, which has greater bearing capacity and stronger wear resistance, greatly increasing the service life.
  5. Oil pump: Oil pump is the main component of the compression vehicle. Our company's new generation oil pump is customized for oil pump factory, with stable performance and extremely low failure rate.
6. Noise: The new generation of compression vehicles has added a photoelectric induction device, which can control the travel distance of each action, reduce the metal sound generated during collision and scraping, and effectively improve noise pollution.

Precautions:
  1. When operating, irrelevant personnel should be avoided from approaching the vehicle, especially the rear of the vehicle.

Two.,Garbage should be evenly put into the filler. Do not concentrate on one side, so that the center of gravity of the vehicle is shifted, or at the mouth of the filler.
If the garbage heap is too high, it will affect the pressure filling of garbage and the uniform distribution of garbage in the garbage bin.
Three, When pressing and filling, you should pay attention to observation. If you find large pieces of other garbage (non-household waste) that cannot be compressed, you should stop it in time.
Stop the operation, continue the operation after cleaning, avoid damaging the working device of the vehicle, and it is strictly forbidden to compress construction waste..
Four.,When lifting and dropping the filler during the unloading operation, you should check the safety around you, operate carefully, and do not go on the slope.
Lift the loader, otherwise it is easy to shift the center of gravity back and cause a rollover accident.
5,The filler must not enter normal driving before it falls and is locked.
